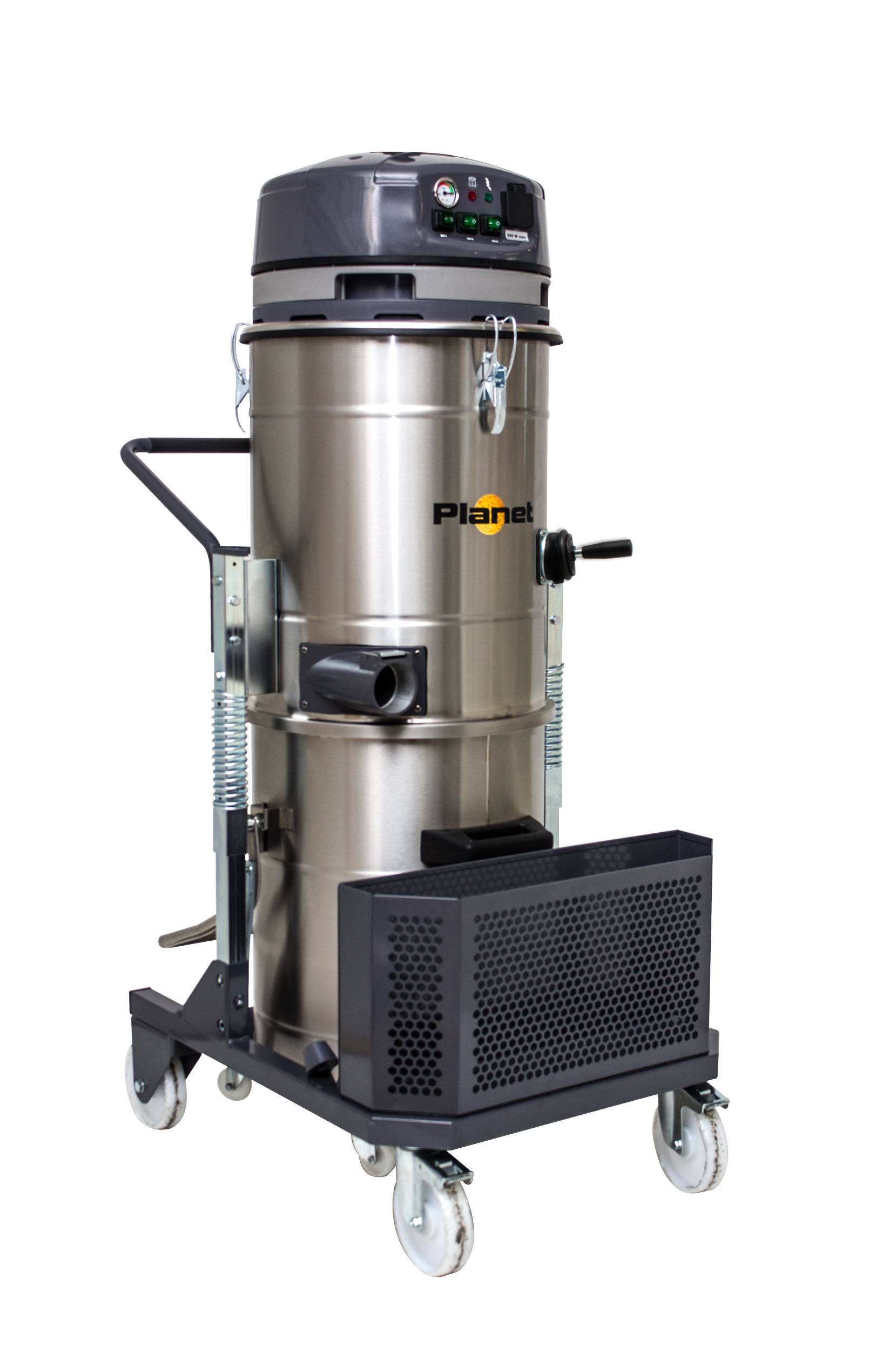

PLANET 200

Industrial Duty Vac® for general cleaning. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying. Perfect for food industry, machine shops, plastics industry, ceramics industry, printing, textiles, heavy clean-up, etc.

/tempFiles/Guest-148.jpg?itID=20
/tempFiles/Guest-30.JPG
/tempFiles/Guest-23.JPG
/tempFiles/Guest-27.JPG
/tempFiles/Guest-77.jpg
/tempFiles/Guest-17.JPG
/tempFiles/Guest-20.JPG

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017


Features

  • 3 Motors with independent control can be run simultaneously or individually.
  • Star shaped polyester main filter with manual filter shaker.
  • Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron.
  • Filter chamber and recovery tank made of stainless steel Type 304.
  • Detachable recovery tank for easy emptying.
  • Sight glass installed on recovery tank.
  • Pressure gage and illuminated filter blockage indicator.

TechnicalSpecs


Specs112060A112062A
Model Name
200
200S
Collection Type
Dry (Wet optional)
Dry (Wet optional)
Voltage @60Hz
120 V
120 V
Type of power
1-phase
1-phase
Power
3.22 HP (2400 W)
3.22 HP (2400 W)
Current (Max)
15.8 amps
15.8 amps
Airflow
270 CFM (7646 L/min)
270 CFM (7646 L/min)
Waterlift (inches H2O)
71.5 in (1816 mmH2O)
71.5 in (1816 mmH2O)
Container Material
304 stainless steel
304 stainless steel
Container diameter
460 mm
460 mm
Main Filter Area
21ft.2 (19500 cm2)
21ft.2 (19500 cm2)
HEPA Filter
n/a
n/a
Type of filter
Star Shaped
Star Shaped
Optional HEPA Filter Efficiency
n/a
n/a
HEPA Filter Area (upstream)
n/a
n/a
Dimensions (L x W x H)
32" x 26" x 65" (81cm x 66cm x 165cm)
n/a
Machine Inlet Diameter
70 mm
70 mm
Weight (Vacuum only)
143 lbs (65 kg)
154 lbs (70 kg)
Cord Length
30 ft. (9m)
30 ft. (9m)
Container Capacity
15.6 gal (60 L)
26 gal (100 L)
Sound Level (@1m)
70 dB(a)
70 dB(a)
