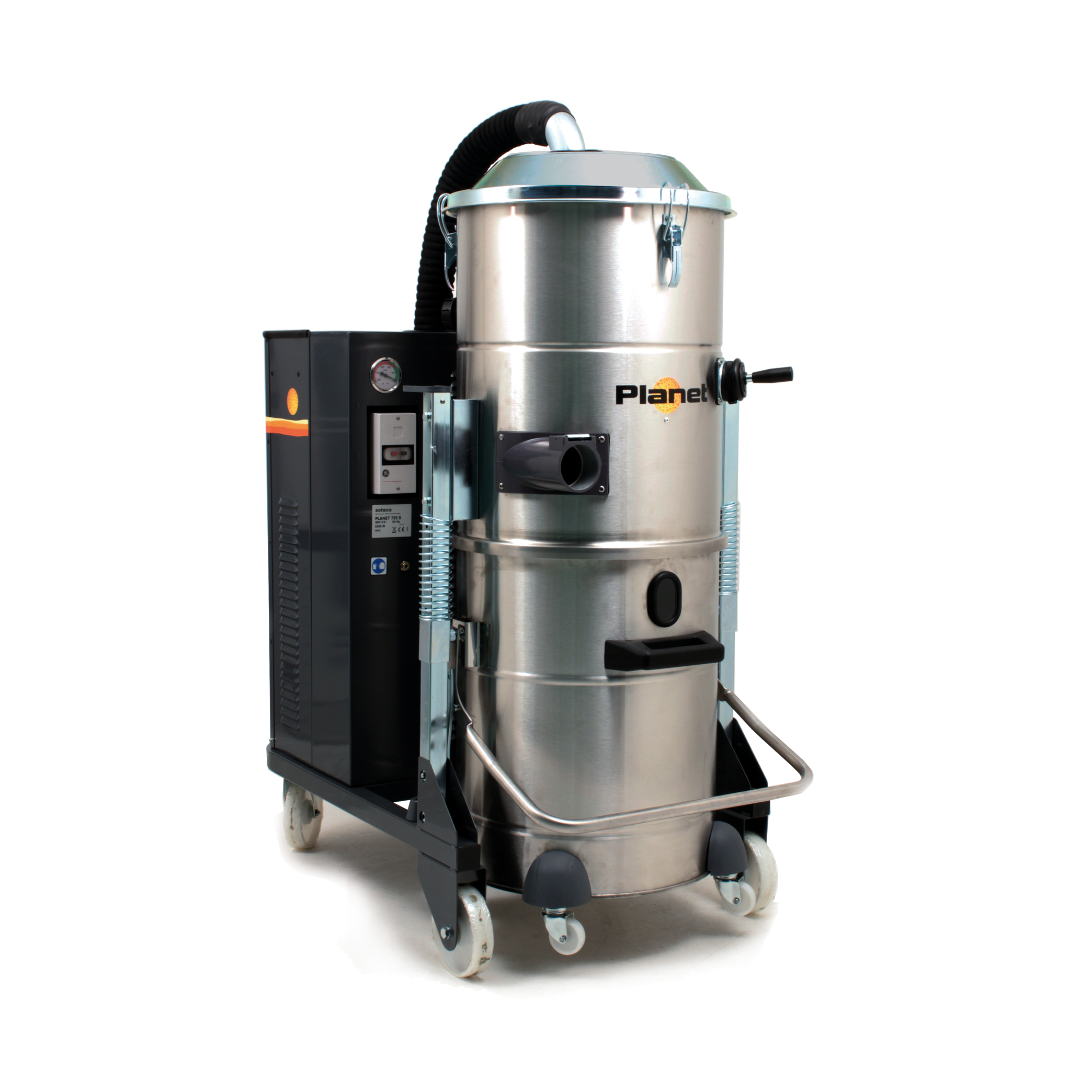

PLANET 730

Industrial Heavy Duty Vac^TM for continuous duty. Very powerful machine capable of working with large diameter suction hoses up to 70mm. Ideal for multiple users on one machine. Stainless steel Type 304 construction. Detachable recovery tank for easy emptying. Perfect for food industry, machine shops, plastics industry, ceramics industry, heavy clean-up, etc.

Downloads

Planet 730 Brochure

Planet 730 Brochure (French)

Planet 730 Brochure (Spanish)

Certifications

CLEANING MACHINES FOR UNCLASSIFIED (GENERAL PURPOSE) AREAS
CLASS 16 1101 - 16 1181
All the electrical components are recognized or certified UL or CSA and qualifies for all applicable requirements CAN/CSA-C 22.2 No. 243 & UL STD No. 1017

Features

Regenerative blower for continuous duty.
Star shaped polyester main filter with manual filter shaker.
Upstream filter cartridge for fine dust.
Optional HEPA filter with minimum efficiency of 99.97% on 0.3 micron (installed in the place of the upstream filter cartridge).
Detachable recovery tank for easy emptying.
Filter chamber and recovery tank made of stainless steel Type 304.
Sight glass installed on recovery tank.
Exhaust silencer for a quiet operation.

TechnicalSpecs

Specs	111214A1	111214A5
Collection Type	Dry Dry	Dry Dry
Voltage @60Hz	460 V 460 V	575 V 575 V
Type of power	3-phase 3-phase	3-phase 3-phase
Power	4 HP (3000 W) 4 HP (3000 W)	4 HP (3000 W) 4 HP (3000 W)
Current (Max)	n/a n/a	n/a n/a
Airflow	185 CFM 185 CFM	185 CFM 185 CFM
Waterlift (inches H₂O)	104 in. H₂O 104 in. H₂O	104 in. H₂O 104 in. H₂O
Container Material	304 stainless steel 304 stainless steel	304 stainless steel 304 stainless steel
Container diameter	460 mm 460 mm	460 mm 460 mm
Main Filter Area	19500 cm² + 10000 cm² 19500 cm² + 10000 cm²	19500 cm² + 10000 cm² 19500 cm² + 10000 cm²
HEPA Filter	Optional Optional	Optional Optional
Type of filter	Star shaped + cartridge Star shaped + cartridge	Star shaped + cartridge Star shaped + cartridge
Optional HEPA Filter Efficiency	99.97% on 0.3 micron 99.97% on 0.3 micron	99.97% on 0.3 micron 99.97% on 0.3 micron
HEPA Filter Area (upstream)	10000 cm² 10000 cm²	10000 cm² 10000 cm²
Dimensions (L x W x H)	n/a n/a	n/a n/a
Machine Inlet Diameter	70 mm 70 mm	70 mm 70 mm
Weight (Vacuum only)	305 lbs (120 kg) 305 lbs (120 kg)	305 lbs (120 kg) 305 lbs (120 kg)
Cord Length	30 ft. (9m) 30 ft. (9m)	30 ft. (9m) 30 ft. (9m)
Container Capacity	15.6 gal (60 L) 15.6 gal (60 L)	15.6 gal (60 L) 15.6 gal (60 L)
Sound Level (@1m)	n/a n/a	n/a n/a
